V31 Video& Telemetry& RC Link

The V31 is an exceptional bi-directional RF link that combines video, telemetry data, and RF links into a single, integrated solution. Specifically designed to meet the needs of professional industrial users in applications such as UAVs and UGVs.

One of the standout features of the V31 is its impressive maximum range of 150km, allowing for long-distance communication in challenging environments.

The V31 supports both point-to-point and point-to-multipoint communication, unlocking a multitude of communication modes and possibilities, for example, one operator to multiple drones, or one drone to multiple receivers.

Key Features

Multi links in one module

Video&telemetry data&RC link

Light weight, compact size

175g

2 frequencies for choice

800MHz, 1.4GHz

Adaptive mechanism

Self-adaptive data rate, bandwidth

Dual SBUS input and output

Able to control the drone and the payload

Advanced technology

OFDM, MIMO

LAN port for video input and output

Transparent data transmission

TTL, RS232 optional

Adjustable RF power

2w, 5w

Frequency hopping

Hop between frequency points

Network mode

point to point, point to multipoint, relay

Encryption

ZUC, SNOW3G, AES

Transmission range

5km, 20km, 30km, 50km, 80km, 150km

Network port expansion dock

Extend serial and LAN ports

Latency

40ms from interface to interface

V31 integrated with video, telemetry data and RC links
V31 integrated with video, telemetry data and RC links
V31 Air with lightweight, compact size, especially suitable for drone applications
V31 Air with lightweight, compact size, especially suitable for drone applications
V31 providing 2 frequencies for chice, 800MHz an 1.4GHz
V31 providing 2 frequencies for chice, 800MHz an 1.4GHz
With dual SBUS design, the operator able to control the vehicle and its payload
With dual SBUS design, the operator able to control the vehicle and its payload
V31 datalink providing a LAN port for vidoe input and output
V31 datalink providing a LAN port for vidoe input and output
V31 datallink providing transparent data transmission with TTL, RS232 for choice
V31 datallink providing transparent data transmission with TTL, RS232 for choice
V31 data link with OFDM and MIMO, providing a high-quality and stable communication link
V31 data link with OFDM and MIMO, providing a high-quality and stable communication link
The V31 module for video links offers adjustable RF power
The V31 module for video links offers adjustable RF power
V31 video link adopting self-adaptive data rate, bandwidth for better overall network performance
V31 video link adopting self-adaptive data rate, bandwidth for better overall network performance
V31 radio module supports frequency hopping to resist jamming and interference.
V31 radio module supports frequency hopping to resist jamming and interference.
A low latency 40ms from Tx to Rx for effective control between a drone and GCS
A low latency 40ms from Tx to Rx for effective control between a drone and GCS
AES128 encryption providing a high level of security for the communication between drone and GCS
AES128 encryption providing a high level of security for the communication between drone and GCS
V31 providing point to point, point to multipoint communication
V31 providing point to point, point to multipoint communication
V31 has an effective range of 80km at 5W broadcast power.
V31 has an effective range of 80km at 5W broadcast power.
E11 port expansion dock can extend more LAN , serial ports.
E11 port expansion dock can extend more LAN , serial ports.

Tracker antenna

Signal reception optimization

Video link workstation

Seamless connection between GCS and video link

Anti-jamming

Frequency hopping, SDR, Self-adaptive RF power

Chinowing Software Configuration

Man Backpack Type

VB31

Product Parameters

Overall Parameters

Overall weight

Dimension

Operating Temperature

Transmission range

Antenna

175g(exclude antennas)

95mm(L)*56mm(W)*3mm(H)

-10℃-+50℃

5km, 20km, 30km, 50km, 80km, 150km

rod antennas, fiber-glass epoxy antennas, panel antenna, tracker antenna

Frequency band

RF power

Transmission latency

Bandwidth

Power supply voltage

800MHz, 1.4GHz

2w, 5w(adjustable)

40ms from interface to interface

1.4MHz/3MHz/5MHz/10MHz/20MHz

12-50V

Interfaces

Video input/output

SBUS port

Serial port

1*LAN port

2 SBUS IN(Ground); 2 SBUS OUT(Air)

TTL(standard), RS232(optional)

Sub models

V31D05

V31D20

V31D30

V31D50

V31D80

V31D150

5km(ground to ground)

20km(air to ground)

30km(air to ground)

50km(air to ground)

80km(air to ground)

150km(air to ground)

Note:

V31 sub-model: V31D20 and V31D30

V31 Pro sub-model: V31D05, V31D50, V31D80, V31D150

Photo Gallery

We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.

Video Gallery

V31 unbox

V31 Showcase

V31D05 UGV Application

Video Gallery

Capturing Real-World Range: See Our Video Link Performance in Action!

V31D50 test video

V31D30 test video

V31 Pro + antenna tracker demo

V31D05 test video

1km range @NLOS condition

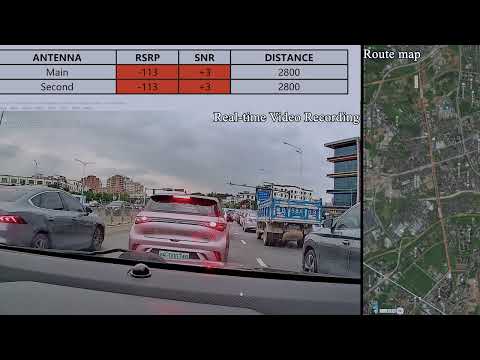

V31D05 test video

5km range on the city road

V31D30 test video

T30+VB31(Man Backpack Type)

T40+V31+Workstation
