T50 Case-Type Ground Control Station
Driven by an Intel i7 12-core CPU, T50 GCS is a powerful choice for users seeking top-tier processing capabilities for professional and resource-intensive applications. Our in-house developed, fully integrated design ensures seamless synergy and unparalleled dependability, setting it apart from conventional GCS solutions.
Sleek, waterproof, and rigorously tested, the T50 GCS excels in professional and defense missions.
Key Features
Robust Computing Power
Equipped with an INTEL i7 12-core CPU, ensuring exceptional processing power and multitasking capabilities
Highly Integrated System
R&D totally in-house, our components stand out from the simple connections of off-the-shelf parts used by other manufacturers, ensuring superior compatibility and reliability
Innovative Damping Design
Breaks away from traditional support rod solutions, it delivers a more stable support structure
Equipped with an INTEL i7 12-core CPU, ensuring exceptional processing power and multitasking capabilities
High Visibility Screen
Exquisite Design
Enhanced Nighttime Visibility and Utility
Integrates dual light columns on both sides for improved visibility and convenience during nighttime operations
Smooth panel without visible screws and connection cables, waterproof interface design, combining sophistication with practicality
Features retractable three-axis joystick with hall-effect, providing a precise control experience
Multifunctional Keyboard
Precise Control
Keyboard can be with a mouse for additional control options, enhancing user convenience
Enhanced Security
Increased security with protective caps on buttons, improving device safety and resistance to damage
Specifically crafted for storing batteries, a mouse, and assorted items
Multi-Interface Design
Storage Compartments
Convenient External Connectivity
Device supports multiple interfaces, allowing easy adaptation to our video links and third-party devices, expanding device applicability
Equipped with HDMI, LAN, USB connectors, supporting external device connections, and providing more flexible external connection options
Dual SBUS input and output
Able to control the vehicle and its payload
Operating system
Windows11, Linux
Various video links for choice
5-150km video link, mesh video link
OUR STORY
We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.
Interfaces
* 1 x TYPE-C
* 3 x LAN Port
* 1 x HDMI
* 1 x HDMI switch(close the upper screens)
* 2x USB
* 1 x Power button
* 1 x STOP button
* 8 x Key button(F1~F8)
* 1 x Power indicator
* 1 x Charge indicator
* 3 x Radio link signal indicator(RS1 RS2 RS3)
* 2 x Radio Link working status indicator(TX RX)
* 1 x Keyboard with mouse
Left side
Right side
* 2 x Knob(LD RD)
* 6 x Toggle switch( SA SB SC SD SE SF)
* 4 x Key button(F9 F10 F11 F12)
* 1 x DC25.2V IN
* 1 x DC24V IN
* 2 x TNC connector(A1 A2)
* 1 x 6PIN aviation socket(1 serial & 2 SBUS)
* 1 x 4PIN aviation socket(LAN port)
* 2 x Telescopic Hall Effect Joystick
RC Configuration Software
User-configured RC system
SBUS channel freely mapping to physical channels
Multiple programming modes for RC system
Key combination, key property setting
USB HID function
Able to interface with external devices or software
We have made quality our habit. It’s not something that we just strive for – we live by this principle every day.
Product Dimension
Overall parameters
Overall weight
Dimension
Screen size
Operating Temperature
IP rating
20kg
850mm(L)*425mm(W)*160mm(H)
17inch 1280*1024 1000NIT(top screen)
17inch 1280*1024 1000NIT (bottom screen)
-20℃-+60℃
IP53(in open status)
IP65(in closed status)
Computer Peripherals
CPU
Graphics
Touchpad
Operating system
RAM
SSD storage
Network
Interfaces
Intel i7 1260P
Intel® Iris® Xe Graphics eligible 1.40 GHz
10-finger capacitive touchscreen
Windows11/Linux
32GB(standard)
1TB(standard)
WIFI 6, Bluetooth 5.2
HDMI IN, USB3.0*2, LAN*3, Type-c
Remote Control
Physical channel
Human interface
Remote control function
SBUS port
Remote control latency
27
USB HID
Dual SBUS independent output
SBUS IN*1; SBUS OUT*2
40ms
Battery Peripherals
Battery Peripherals
Working time
Charging port
25.2V/30000mAh (external power source also supported)
5hs@full battery capacity
DC25.2v
Communication Link
V21 Video& telemetry& RC link
V31 Video&telemetry&RC link
VM21 Mesh video link
VM31 Mesh video link
M1 4K Mesh video link
VX10 4K P2MP video link
The 3rd party RF link
15km grade
5km, 20km, 30km, 50km, 80km, 150km grade
10km grade
15km, 50km grade
20km grade
20km grade
Supported
Product Parameters
Main joystick*2
Knob*2
Key button*12
3-position switch*4
2-position switch*2
Stop button*1
Photo Gallery
Video Gallery
T50 comes with retractable Joysticks
The T50 adopts a full-screen design
T50 comes with multifunctional TYPE-C
supports extend T50 screen to another monitor
T50 comes with HID function

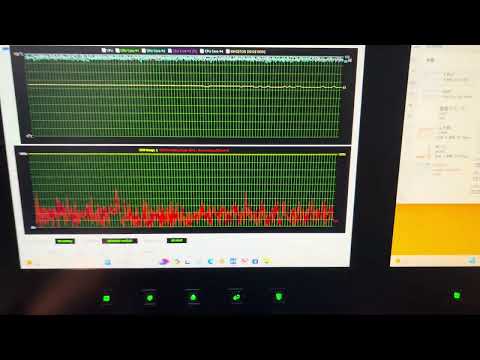

T50 working time test
